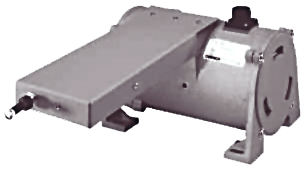

Redundant Brush System Celesco Model RBS9000

Redundant Brush System, Celesco, Model RBS9000• RBS option offers extra protection against extraordinarily dusty environments

• RBS option reduces the cable-exit opening down to a single point to prevent excess debris from entering the spool cavity

• RBS option uses two sets of cable brushes to help clean the measuring cable before it is retracted into the enclosure

Designed for extreme applications where exceptional amounts of dirt, spray or some other foreign matter may enter through the standard Redundant Brush System Celesco Model RBS9000 ‘slot opening’ and interfere with the cable reel mechanism.

Redundant Brush System Celesco Model RBS9000 reduces the cable opening down to a single-point exit to block most debris from entering the cable-reel area. Because some debris may get drawn into the transducer by the measuring cable upon retraction, we’ve taken two measures to help reduce that.

First, each Redundant Brush System Celesco Model RBS9000 is constructed using our nylon-coated measuring cable which has a smooth layer of protection that helps keep debris from clinging to it.

Second, the measuring cable passes through two integral brushes which help wipe
away any matter that may be clinging to it.

Redundant Brush System Celesco Model RBS9000
